HDPE Pipes engineered
to outlast everything.

100% virgin PE100 resin. IS 4984:2016 specification. 20mm to 400mm diameter. Built for India's water infrastructure — and proved by 12,000+ km of complaint-free delivery.

HDPE Pipes HDPE Coils Quality Assurance Upcoming Range

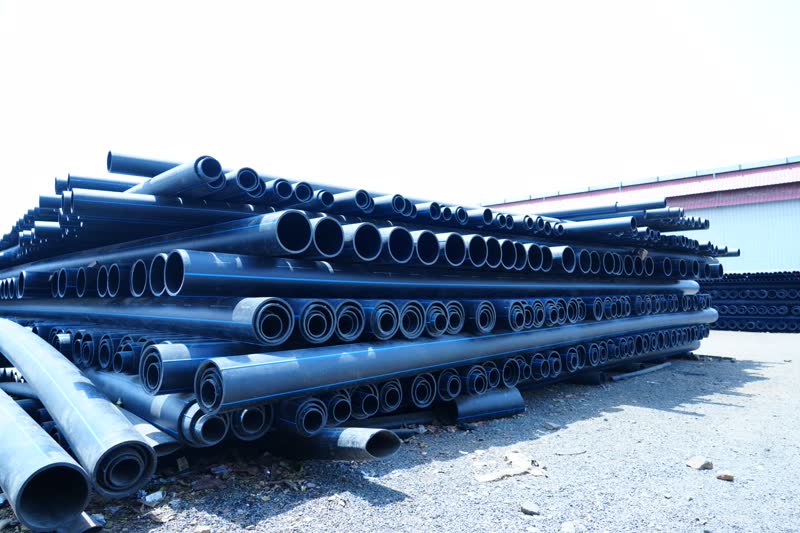

Stacked HDPE pipes at the Aquatic Pipes yard, Rajgarh

HDPE Pipes — The backbone of India's water network

Our High-Density Polyethylene pipes are manufactured exclusively from 100% virgin PE100 resin of IS 7328 specification — the only raw material the BIS permits for IS 4984 pipes — sourced from IOCL, Reliance, or equivalent manufacturers. No recycled material. No shortcuts.

Produced on world-class KABRA-KOLSITE extruder lines at 8–12°C water temperature, every pipe undergoes dimensional, hydraulic, and material testing in our in-house BIS-approved laboratory before dispatch.

Available in straight lengths (12 metres) for diameters above 110mm, and coil form (100–550 metre coils) for diameters 20mm to 110mm — with optional copper extrusion for underground tracing.

IS 4984:2016 (BIS Certified) ISO 9001:2015
Quick Specifications
Diameter Range
125mm – 400mm
OD sizes per IS 4984
Pressure Classes
PN 4 – PN 10
PN 4, PN 6, PN 8, PN 10
Raw Material
PE100
100% virgin · IS 7328 grade
Standard
IS 4984:2016
BIS License 8200093107
Straight Length
12 Metres
For OD above 110mm
Coil Length
100 – 550 Metres
For OD 20mm to 110mm

Pressure Class & Diameter Reference

Pipes are manufactured in multiple pressure classes (PN) and corresponding SDR (Standard Dimension Ratio) designations. Select the class that matches your working pressure requirement.

Pressure Class (PN) SDR Designation Typical Application Available Diameters
PN 4 SDR 41 Low-pressure & gravity-flow lines 125mm – 400mm
PN 6 SDR 26 Gravity irrigation, general water supply 125mm – 400mm
PN 8 SDR 21 Pressurised water supply 125mm – 400mm
PN 10 SDR 17 High-pressure water mains, industrial supply 125mm – 315mm
Where Our Pipes Are Used

Built for every kind of water project

From India's most critical drinking water missions to large-scale agriculture and industrial systems.

Potable Water Supply

Lift & Gravity Irrigation

Sewerage & Drainage

Agricultural Drip & Sprinkler

Industrial Fluid Systems

HDPE coils stacked in the yard at Aquatic Pipes, ready for dispatch

HDPE Coils — Last-mile delivery, made easy

For diameters up to 110mm, we supply pipes in coil form — significantly reducing the number of joints required in the field, lowering installation time and leakage risk.

Coil-form pipes are the standard choice for last-mile water delivery, agricultural drip systems, and rural water supply schemes where trenching and laying flexibility is essential.

Available with optional copper extrusion — an insulated copper wire co-extruded along the outer surface — enabling precise underground pipe tracing without excavation.

Fewer joints — lower leak risk

100–550 metre continuous coils eliminate most field joints, the primary failure point in water supply systems.

Flexible — installs around obstacles

Natural flexibility eliminates need for fittings at most bends, reducing cost and installation time in uneven terrain.

Safe for drinking water

Same 100% virgin PE100 formulation as our straight pipes. Certified safe for potable water transport under IS 4984:2016.

UV & termite resistant

Carbon black additive provides UV protection for outdoor storage and installation. Termite and rodent resistant — no protective coating needed.

Coil Specifications

Diameter Range 20mm – 110mm OD
Standard Coil Length 100 Metres – 550 Metres
Pressure Classes PN 2.5 to PN 10
Material Grade PE100 (100% virgin)
Standard IS 4984:2016
Colour Black with blue stripes
UV Protection Carbon black (≥2% min.)
Joint System Butt fusion / electrofusion
Copper Extrusion Available (optional)
Our Process

From virgin granules to certified pipe

Every metre we transport passes through four controlled stages.

STEP 01

Virgin PE100 Resin

Sourced from IOCL, Reliance or equivalent — the only BIS-mandated raw material.

STEP 02

KABRA-KOLSITE Extrusion

World-class extruder lines running at a controlled 8–12°C water temperature.

STEP 03

In-house Lab Testing

Dimensional, hydraulic and material checks in our BIS-approved laboratory.

STEP 04

Certified Dispatch

Batch-certified to IS 4984 and shipped to your project site on schedule.

Our Track Record

Open to inspection, proven by results

Our plant stays open for unannounced audits, and our field record speaks for itself — over 12,000 km of pipe delivered without a single complaint.

Open

Door Audits — No Appointment

Any client, contractor, or government quality inspector may visit our plant at any time without prior notice. We maintain this policy because our process is fully compliant and we have nothing to conceal.

Zero

Complaints in 7+ Years

Over 12,000 km of HDPE pipes delivered across government and private projects — without a single complaint about quality, dimensional accuracy, pressure rating, or field performance.

Expanding Range

Coming next — a complete piping portfolio

Our next phase will bring the same ethical manufacturing standards to a much broader range of pipe products.

UPVC — GREY SERIES PVC — STANDARD SERIES UPVC — WHITE SERIES PVC · UPVC · PPR · New Range Coming Soon PVC UPVC PPR Sprinkler Systems

PVC & UPVC Pipes

Rigid PVC and UPVC pipes for above-ground plumbing, water supply, column pipes, and conduit applications. The most widely specified pipe type in Indian construction.

Column pipes Conduit pipes SWR drainage Casing pipes

PPR Pipes & Fittings

Polypropylene Random Copolymer pipes for hot & cold plumbing in residential and commercial buildings. Fused joints ensure completely leak-free systems.

Hot water piping Potable water Chemical resistant Fittings included

Sprinkler & Drip Systems

Agricultural sprinkler and drip irrigation systems for efficient water delivery to crops. Pairs directly with our HDPE coil supply for complete field-ready packages.

Drip emitters Sprinkler heads Lateral pipes Filters & fittings

HDPE Fittings

Butt-fusion and electrofusion fittings to complement our HDPE pipe range — elbows, tees, reducers, end caps, and saddle clamps. Full system from a single supplier.

Butt-fusion elbows Electrofusion couplers Reducing tees End caps

Interested in the upcoming range? Register your requirement now and we will keep you updated on availability and pricing.

Register Interest
Buyer FAQ

HDPE pipe questions, answered

Common questions from engineers, contractors and dealers about specification, certification and supply.

What sizes and pressure classes of HDPE pipe do you manufacture?

We manufacture HDPE pipes from 20 mm to 400 mm outer diameter, in pressure classes from PN 2.5 to PN 10, supplied in both straight lengths and coils as per IS 4984. Tell us your diameter, pressure class and quantity and we will confirm availability.

Are Aquatic HDPE pipes BIS certified?

Yes. Every pipe is manufactured to IS 4984 and carries the BIS Standard Mark, and our plant is ISO 9001:2015 certified. Each batch is hydrostatically tested in our in-house laboratory and dispatched with test certificates.

Do you use virgin or recycled material?

We use 100% virgin PE100 resin and never blend recycled or reprocessed material. This is what allows our pipes to hold their full pressure rating for the rated service life. You can read why virgin material matters here.

What is the service life of an HDPE pipe?

HDPE pipes made from virgin PE100 are designed for a service life of 50 years or more when operated within their rated pressure class, thanks to the material's resistance to corrosion, scaling and chemical attack.

Can HDPE pipes be used for drinking water supply?

Yes. HDPE is non-toxic, corrosion-free and approved for potable water. Our IS 4984 pipes are widely used for drinking-water schemes, including Jal Jeevan Mission projects across Madhya Pradesh and neighbouring states.

What is the difference between PN6, PN8 and PN10?

PN is the nominal pressure rating, the maximum continuous working pressure in bar that a pipe can safely carry. A PN10 pipe handles 10 bar, PN8 handles 8 bar and PN6 handles 6 bar; a higher PN means a thicker wall. We help you choose the right class for your head and flow.

How are HDPE pipes joined?

HDPE pipes are joined by butt-fusion or electrofusion welding for larger diameters, and by compression fittings for smaller sizes. A correctly welded joint is leak-free and as strong as the pipe itself.

Do you supply for government and Jal Jeevan Mission projects?

Yes. We have supplied over 12,000 km of HDPE pipe for water-supply and irrigation projects, including Jal Jeevan Mission, with full BIS documentation and batch test certificates for tender compliance.

Need detailed specifications or a quotation?

Contact us with your project requirements — diameter, pressure class, quantity, and delivery location — and we will respond within one working day.
